gitlab-board

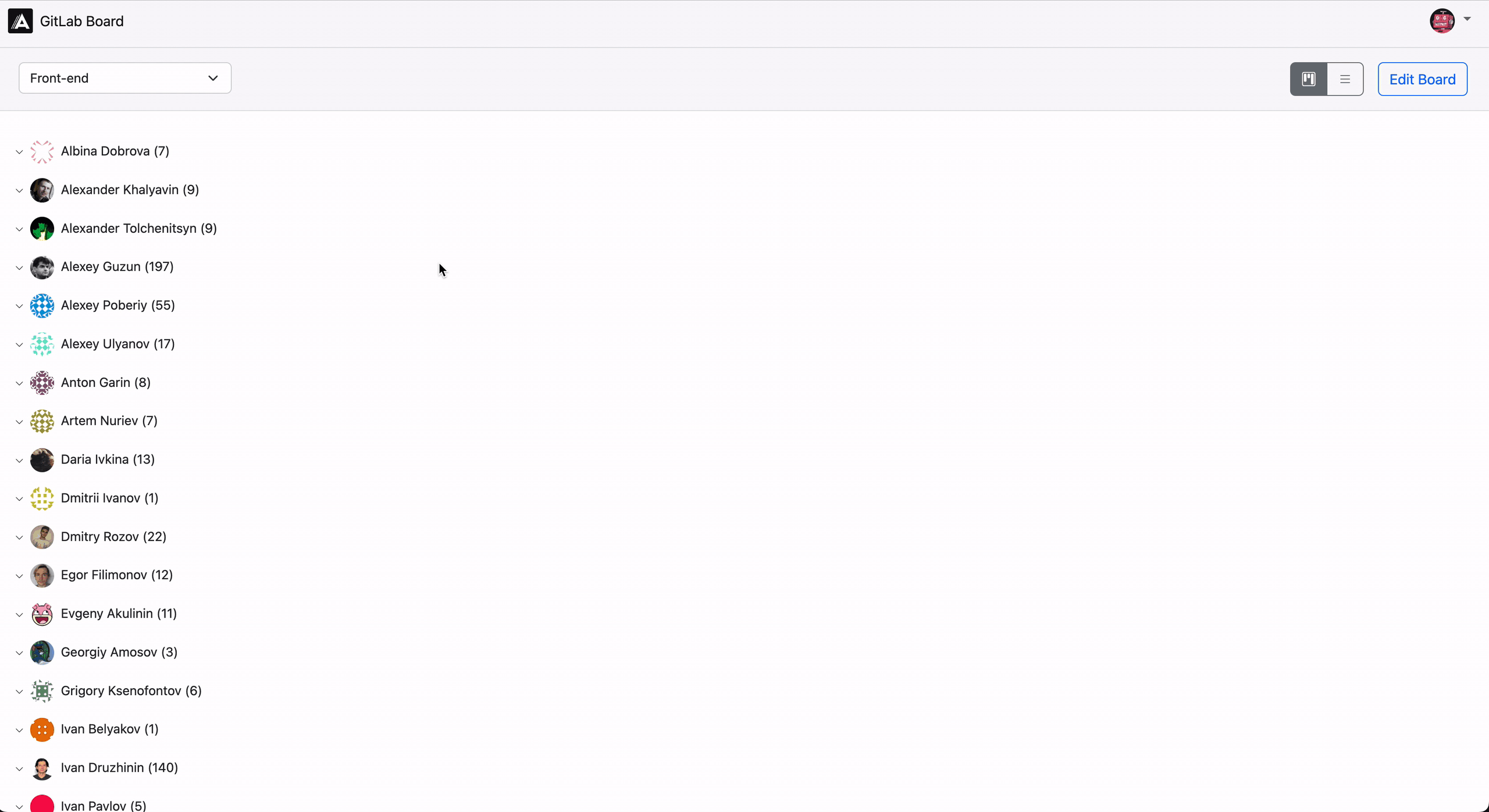

Extended kanban board application for GitLab Community Edition. It provides kanban board by assignee, grouped by teams.
Requirements
The application requires three scoped labels:
Status::{name} - status labels
Priority::{name} - priority labels
Type::{name} - task type
Installation
1. Configure environments
Copy .env.example and name it .env. Most environment variables are already set, but some still need to be filled in.
SECRET_KEY=[generate your own]
JWT_SECRET=[generate your own]
VITE_GITLAB_API_URL=[gitlab api url]
VITE_GITLAB_API_TOKEN=[gitlab api token]
Warning
Database password is set by default. Replace values in environments DATABASE_PASSWORD and POSTGRES_PASSWORD with a more complex one for security reasons.
2. Build images
Run next command
docker-compose build
Note
You will need to push images for production usage.
3. Configure Nginx
Nginx is used as reverse proxy. Copy nginx/board.conf to /etc/nginx/conf.d.
Board will be available at http://localhost:8000.
Warning
HTTPS is disabled by default. Enable it for production. Such as Let’s encrypt.
4. Deploying via docker-compose
Run next command
docker-compose up -d
Advanced
Customization
Custom Logo
The default logo can be changed. Add an VITE_LOGO_URL environment variable with image path.
Configuration
Frontend environment variables
VITE_BOARD_API_URL
Required
GitLab Board API URL.
VITE_GITLAB_API_URL
Required
GitLab API URL.
VITE_GITLAB_API_TOKEN
Required
GitLab API Token.
VITE_LOGO_URL
Optional
Logo URL. If not specified, the default logo is taken.
API environment variables
DEPLOYMENT_ENVIRONMENT
Required
Deployment environment. Can be PROD or LOCAL.
By default PROD.
SECRET_KEY
Required
A secret key for a particular Django installation. This is used to provide cryptographic signing, and should be set to a unique, unpredictable value.
See https://docs.djangoproject.com/en/4.1/ref/settings/#secret-key.
JWT_SECRET
Required
This is the secret key used to sign the JWT. Make sure this is safe and not shared or public.
CSRF_TRUSTED_ORIGINS
Required
A list of trusted origins for unsafe requests (e.g. POST).
See https://docs.djangoproject.com/en/4.1/ref/settings/#csrf-trusted-origins.
CORS_ALLOWED_ORIGINS
Required
A list of origins that are authorized to make cross-site HTTP requests.
DATABASE_HOST
Required
Database host.
DATABASE_PORT
Required
Database port.
DATABASE_NAME
Required
Database name.
DATABASE_USER
Required
Database user.
DATABASE_PASSWORD
Required
Database password.
TIME_ZONE
Required
Time zone database name. (e.g Europe/Berlin).
LANGUAGE_CODE
Optional
ISO 639-1 standard language codes (e.g ja). By default en-us.
